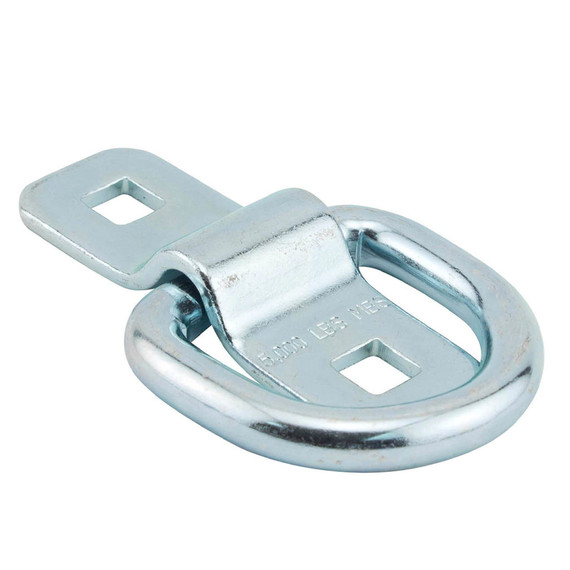

Erickson Bright Zinc Plated Wire Flip Ring Anchor - 5000 lb

Flip rings are a quick and easy way to add anchor points to your trailer. They can be mounted on the wall or the floors. They are incredibly easy to install, which makes them very popular.

Features

• The mounting plate allows you to easily mount this ring to a floor or a wall
• The zinc plated finish protects against corrosion, extending the life of the anchor
• Ideal for trailers mounts easily into walls and floors
• Use with grade 5 bolts or better for securing anchor’s (not included)

Proper Use/Safety Factors

• Always check to make sure the anchor ring is not damaged before use
• Always check to make sure the anchor ring is mounted correctly before use
• If either of the above are true, do not use
• Never exceed the weight restrictions on this product

Specifications

• Finish: Bright Zinc Plated
• Ring Thickness: 3/8"
• Ring Width: 1-1/2" at Base Inside
• Ring Height: 1-1/2" Inside
• Base Length: 3-1/2"
• Base Width: 1-1/8″
• Base Mount Hole Dimensions: 3/8" Square Holes on 2-3/8" Center
• Breaking Strength: 5000 lb
• Working Load Limit: 1665 lb
