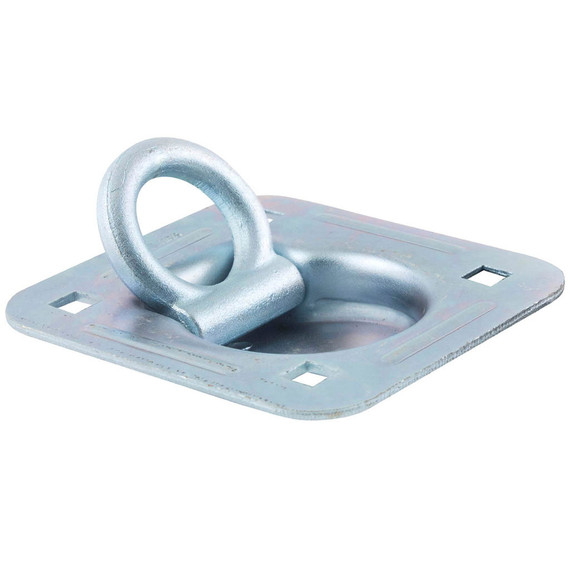

Erickson Zinc Plated Recessed Anchor Ring - 5000 lb

Anchor rings are a quick and easy way to add anchor points to your trailer. They can be mounted on the wall or the floors. They are incredibly easy to install, which makes them very popular.

Features & Benefits

• The mounting plate allows you to easily mount this ring to a floor or a wall
• The zinc plated finish protects against corrosion, extending the life of the anchor
• This anchor point is very versatile with different hook types
• 4 hole bolt base
• Always use grade 5 bolts or better for securing anchor (not included)

Proper use/safety factors

• Always check to make sure the anchor ring is not damaged before use
• Always check to make sure the anchor ring is mounted correctly before use
• If either of the above are true, do not use
• Be sure mounting bolts are installed in main frames in the floors or walls
• Never exceed the weight restrictions on this product

Specifications

• Finish: Zinc plated
• Ring thickness: 3/8"
• Ring recesses: 3/4"
• Ring diameter: 1" at base inside
• Ring height: 1-1/4"
• Base plate mount hole dimensions: 3/8" holes on 3" center
• Base plate length: 4-7/8"
• Base plate width: 4-1/2"
• Breaking strength: 5000 lb
• Working load limit: 1665 lb
