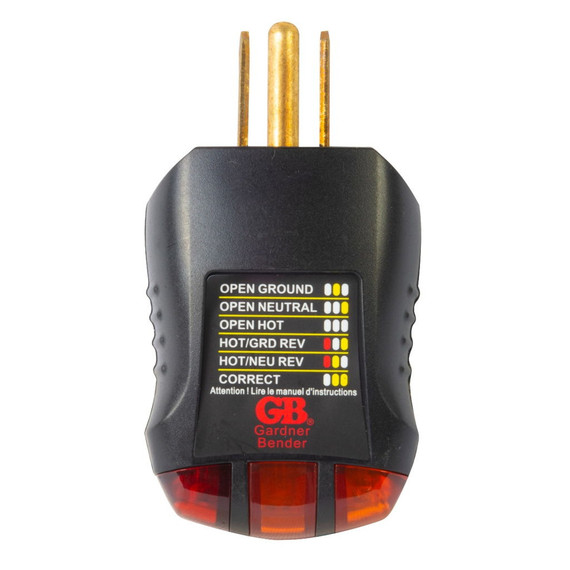

Gardner Bender Receptacle Tester and Circuit Analyzer - 120V

This 120-VAC Outlet Tester tests standard receptacles to ensure proper wiring. Neon light indicators give positive indication of circuit status. This compact unit plugs into any standard 3-wire/grounded receptacle (110 - 125 V AC circuits). It tests for six circuit conditions: open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring.

Features

• Tests multiple conditions - Open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring
• Succession of yellow and red lights provides indication of circuit status or specifies wiring errors
• Provides easy-to-read views from the top, side and bottom of tester
• Integrated neon lenses
• ETL Approved

Specifications

• Color: Black
• Voltage: 120V
• Hertz: 60 Hz
• Operating Environment: 32° - 104° F (0 - 32° C)80% RH max., 50% RHabove 30° C
• Application Temperature: 32°F - 104°F
• Includes: Tester
• Warranty: 1 Year
• Certification: RoHS Compliant, ETL Approved

Manual Instruction.pdf
